CENTRIFUGAL FAN BACKWARD AEROFOIL, LIMIT LOAD - TECHNICAL SPECIFICATION
1. Fan Type - Centrifugal, backward-curved aerofoil blade fan
2. Impeller Design - Aerodynamically optimized backward aerofoil blades
3. Air Volume - Suitable for high-volume air movement applications
4. Static Pressure - Designed for medium to high static pressure requirements
5. Fan Efficiency -High aerodynamic efficiency for energy-efficient operation
6. Limit Load Characteristic - Non-overloading power characteristic at higher air Volume rates
7. Casing - Heavy-duty fabricated casing with rigid structural construction
8. Impeller Balance - Dynamically balanced for smooth and vibration-free operation
9. Drive Arrangement - Available in direct-drive or belt-driven configurations
10. Motor - TEFC, high-efficiency motor suitable for continuous operation
11. Speed Control - Compatible with VFD for variable air Volume requirements
12. Noise Level - Aerodynamically optimized design for reduced operational noise
13. Bearing System - Heavy-duty bearings designed for reliable continuous operation
14. Maintenance - Easy-access construction for inspection and servicing
15. Applications -HVAC systems, AHUs, industrial ventilation, clean rooms, factories, and air distribution systems.

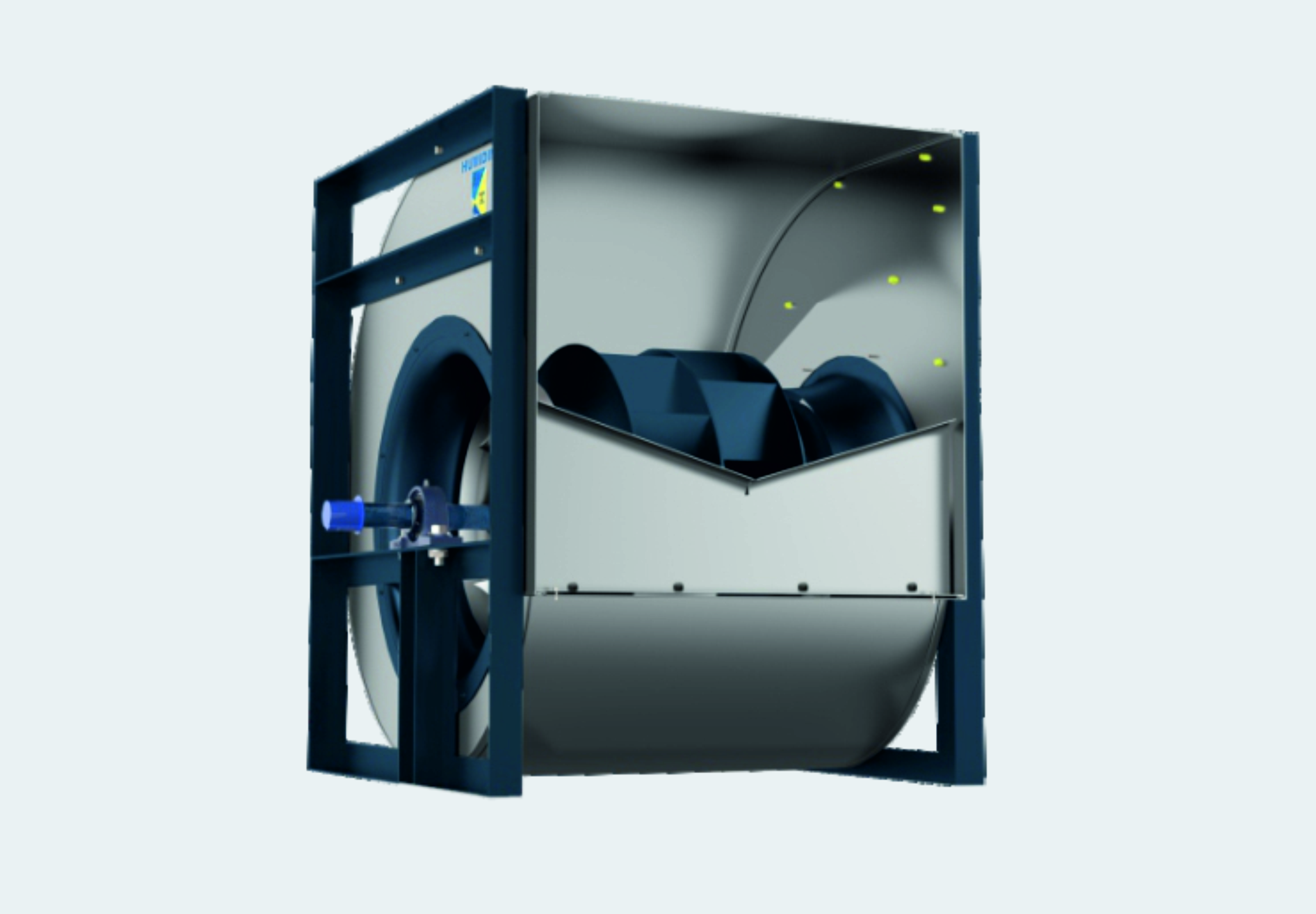

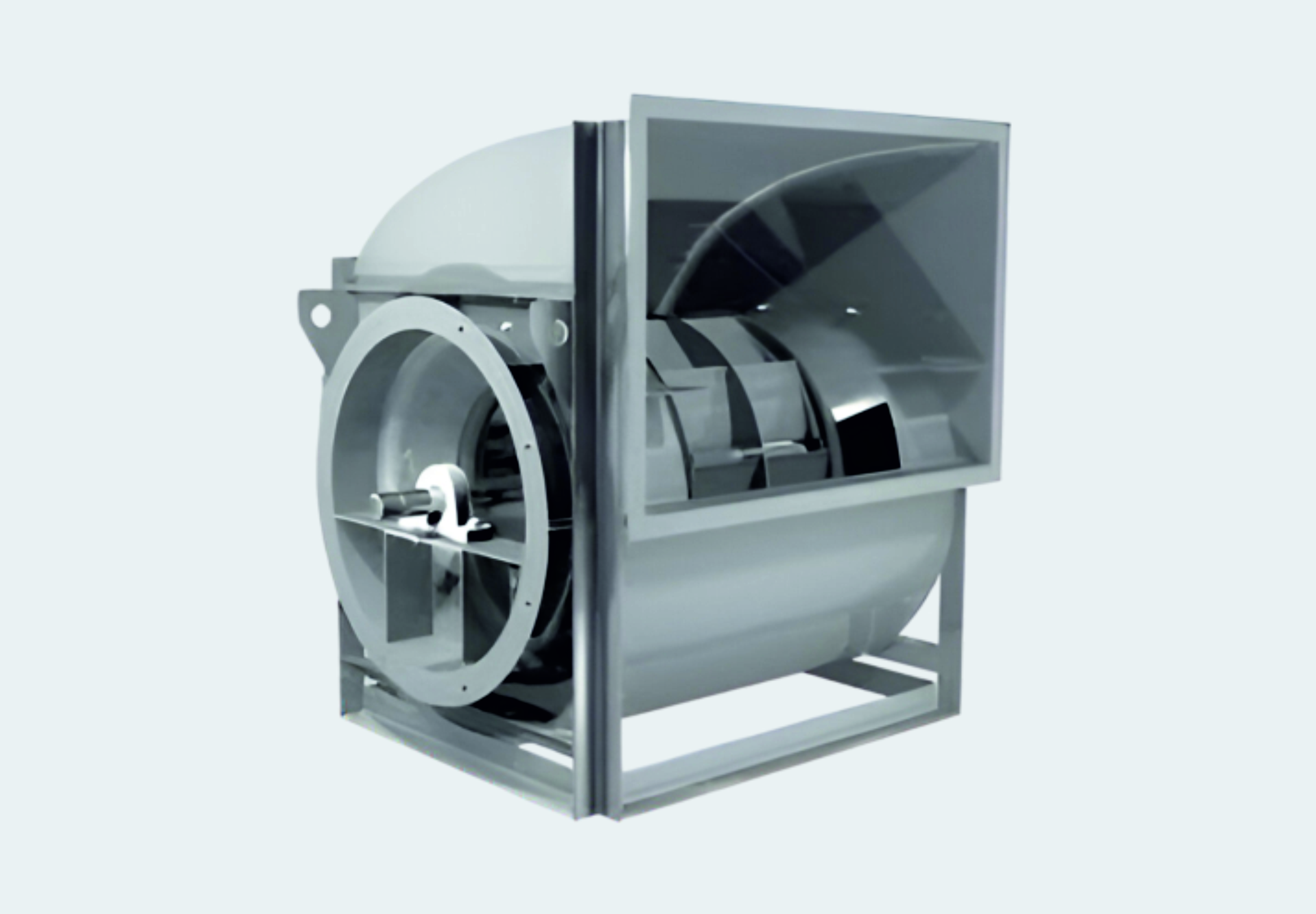

CENTRIFUGAL FAN – BACKWARD AEROFOIL, LIMIT LOAD
A Backward Aerofoil Limit Load Centrifugal Fan is a high-efficiency industrial fan designed for reliable air movement at medium to high pressures. Its backward-curved aerofoil blades provide smooth air Volume, reduced turbulence, and high aerodynamic efficiency. The limit-load design prevents excessive power consumption at higher air Volume rates, making it suitable for HVAC systems, industrial ventilation, air-handling units, and process applications
