Air Handling Unit

Air Handling Unit

Air Handling Unit

An AHU is a critical component of HVAC systems, designed to regulate, circulate, and condition air for large-scale applications. It efficiently manages outside air

through heating, cooling, humidification, or dehumidification, ensuring a clean, healthy, and comfortable environment. Built with high-quality coils, filters, fans, and

controls, Humidin AHUs are engineered for reliability and durability. They are widely used in industries, hospitals, malls, pharmaceuticals, clean rooms, and other spaces

requiring superior air quality.


FLOOR MOUNTED

CEILING SUSPENDED

VERTICAL AHU

Enquire Now Catalogue

Technical Specification of Air Handling Unit

1.  Panel Construction - Double Skin
2.  Outer Skin Moc - Pre Plasticized GI
3.  Inner Skin Moc - Pre Plasticized GI / AL / SS 304
4.  Thickness of Outlet Sheet In MM - 0.6 TO 1
5.  Thickness of Inner Sheet In MM - 0.6 TO 1
6.  Insulation - Pull Insulation, 40+2kg/M3
7.  Aluminum Profile Type - Thermal Break / Hollow Profile
8.  Profile Corner - PVC
9.  Panel Jointer - PVC / Aluminum
10. Door Handle / Hinge - PVC
11. Panel Thickness with Gasket In MM - 25 /50
12. Food Mount - Cushy Foot
13. Unit Base Stand - GI /MS
14. Material of Drain Pan - SS 304
15. Common Base Frame ( Fan & Motor ) - AL / GI / MS
16. Filter Frame - GI / AL / SS

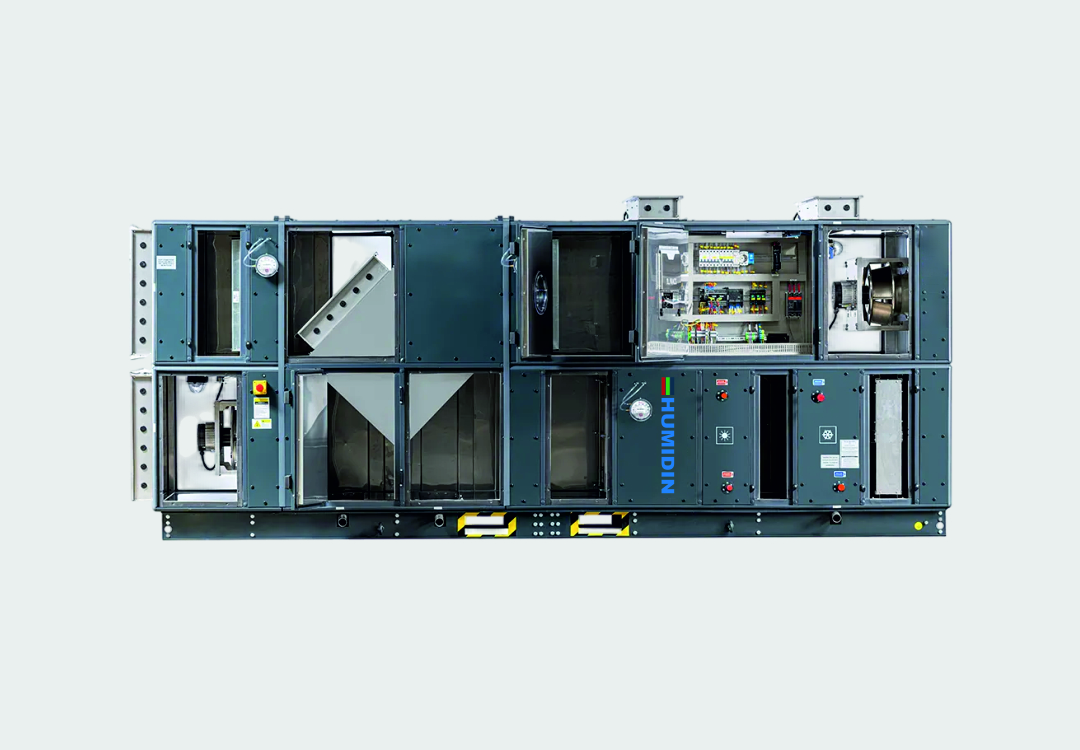

Double Skin Air Handling Unit

A Double Skin Air Handling Unit (DSAHU) is an advanced HVAC system designed to efficiently handle, filter, cool, heat, and distribute air in commercial and industrial spaces. It features a double-wall insulated construction that provides better thermal insulation, reduces heat loss, minimizes condensation, and ensures improved indoor air quality.

The unit can be configured with components such as filters, cooling/heating coils, fans, dampers, humidifiers, and heat recovery systems, depending on the application. Its robust construction and flexible configuration make it suitable for hospitals, commercial buildings, pharmaceutical facilities, cleanrooms, manufacturing plants, and other demanding environments.

Download Catalogue
