VANE AXIAL FLOW FAN are strategically positioned inside axial flow fans to guide air in a specific direction. Their optimized angle improves air Volume efficiency, reduces turbulence, and minimizes pressure losses. This ensures smoother air movement, better air distribution, enhanced fan performance, and reliable operation across various industrial and ventilation applications.
Technical Specifications – Vane Axial Flow Fan
1. Fan Type - Vane Axial Flow Fan
2. Airmovement Capacity - As per system requirement
3. Static Pressure - As per application requirement
4. Fan Diameter - Customizable as per requirement
5. Impeller - Aerodynamically designed axial impeller with guide vanes
6. Number of Blades - As per fan size and performance requirement
7. Blade Material - Aluminium / GI / FRP / suitable material
8. Casing Material - Mild Steel / Galvanized Steel / Stainless Steel
9. Drive Arrangement - Direct Drive / Belt Drive
10. Motor Type - TEFC, 3-Phase induction motor
11. Motor Efficiency - IE2 / IE3 / IE4, as required
12. Motor Protection - IP55 or as specified
13. Insulation Class - Class F
14. Operating Temperature - As per application and fan construction
15. Speed - As per required airflow and pressure
16. Control - DOL / Star-Delta / VFD compatible
17. Installation - Horizontal / Vertical, depending on application
18. Application - Industrial ventilation, exhaust, smoke extraction, and air movement systems

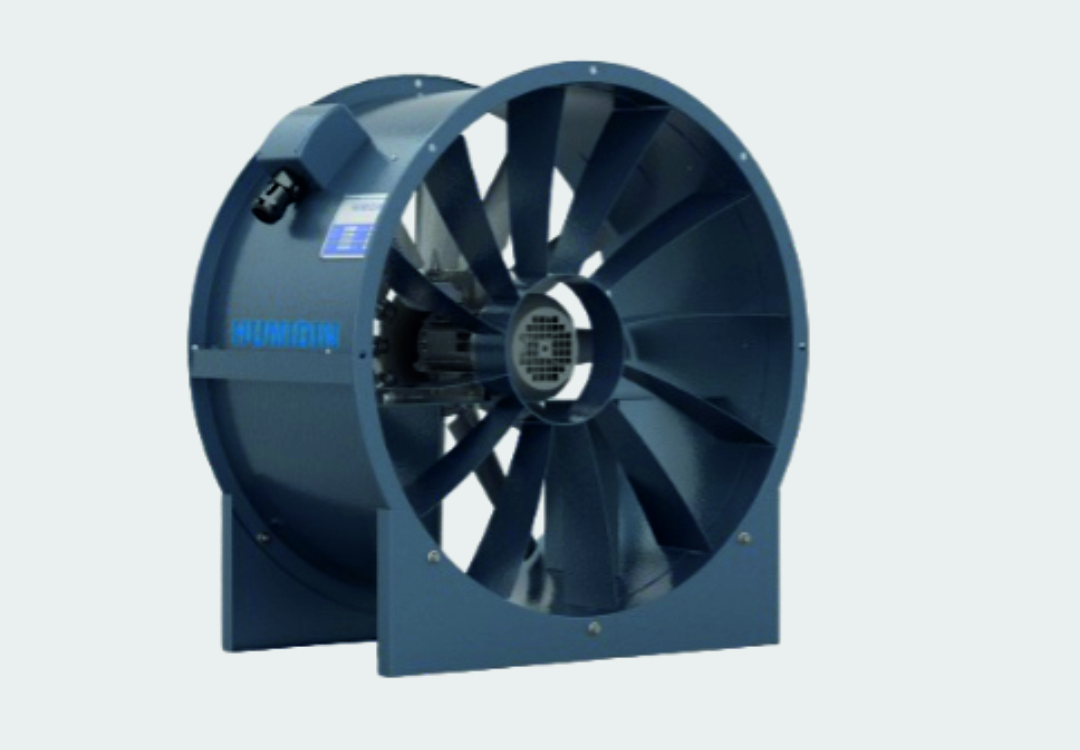

A Vane Axial Flow Fan is a high-performance ventilation fan designed to move large volumes of air efficiently along the fan’s axis. It features strategically positioned guide vanes that straighten and direct the airmovement, reducing turbulence and improving aerodynamic efficiency. These fans are suitable for industrial ventilation, smoke extraction, tunnel ventilation, HVAC systems, and large-scale air movement applications
