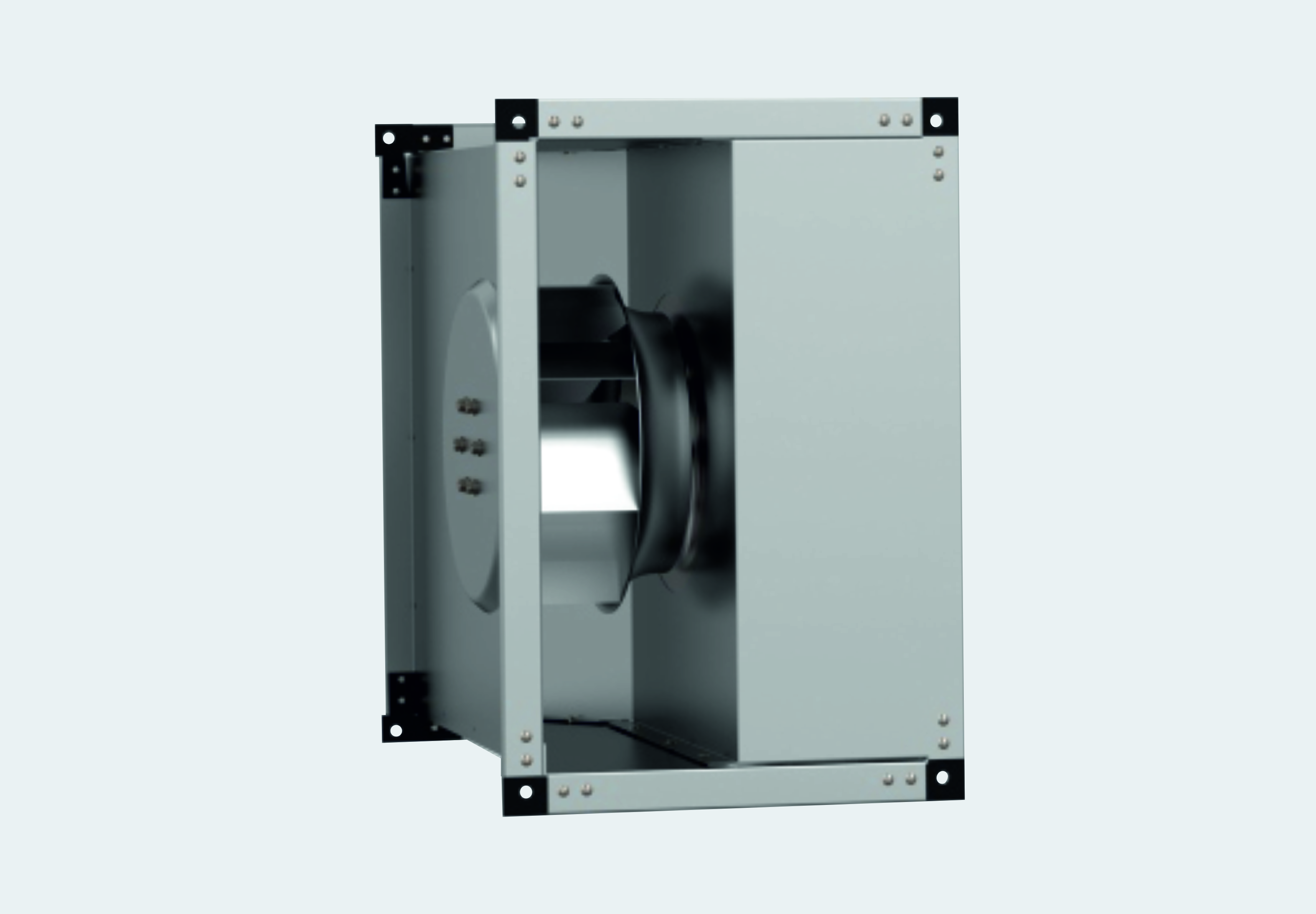

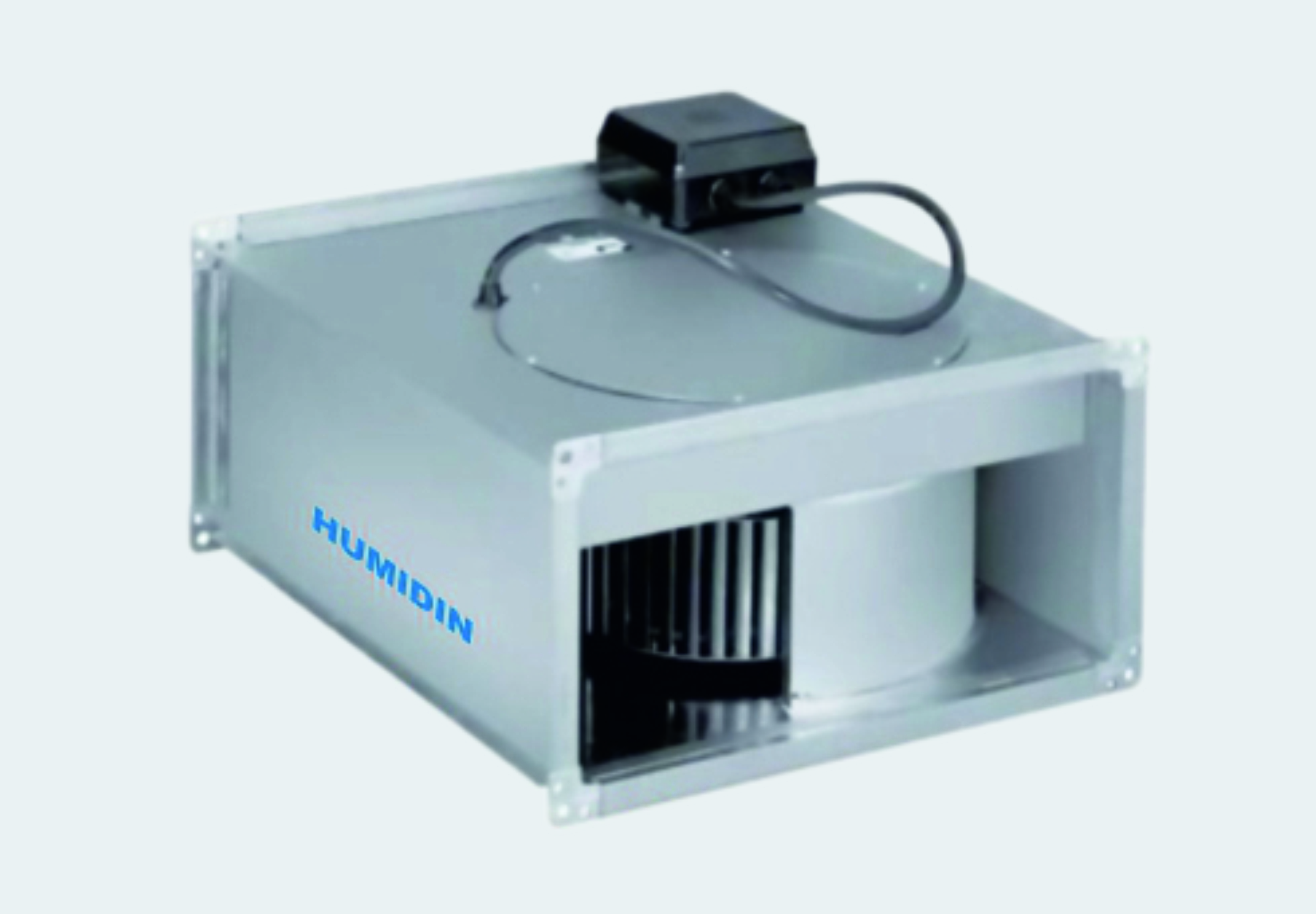

Inline Fan (Forward & Backward Curved)

RECTANGULAR INLINE FAN

When discussing rectangular inline fans, the focus is generally on their design and application in HVAC (Heating, Ventilation, and Air Conditioning) systems or industrial ventilation systems. These fans are commonly used for applications that require space efficiency, easy installation, and effective air Volume within ducts. The main distinction in this context involves the fan blade types (forward-curved vs. backward-curved) and skin types (single skin vs. double skin), which influence the performance, efficiency, and suitability of the fan for specific tasks.

Enquire Now Catalogue

INLINE FAN (FORWARD & BACKWARD CURVED) - TECHNICAL SPECIFICATION

1. Fan Type - Inline Centrifugal Fan – Forward & Backward Curved
2. Impeller - Dynamically balanced forward/backward curved centrifugal impeller
3. Casing - Robust GI/Aluminium construction with corrosion-resistant finish
4. Air Volume - Designed for efficient and controlled air movement through duct systems
5. Motor - High-efficiency motor suitable for continuous-duty operation
6. Drive - Direct-drive or belt-drive arrangement, as per application
7. Performance - Suitable for low to medium/high static pressure applications
8. Noise Level - Optimized aerodynamic design for reduced operational noise
9. Installation - Compact inline arrangement for easy installation and maintenance

INLINE FAN (FORWARD & BACKWARD CURVED) - DESCRIPTION

Inline Fans with forward and backward curved centrifugal impellers are designed for efficient air movement through ducts. They provide reliable ventilation, compact installation, low noise, and stable performance for commercial, industrial, and HVAC applications.
