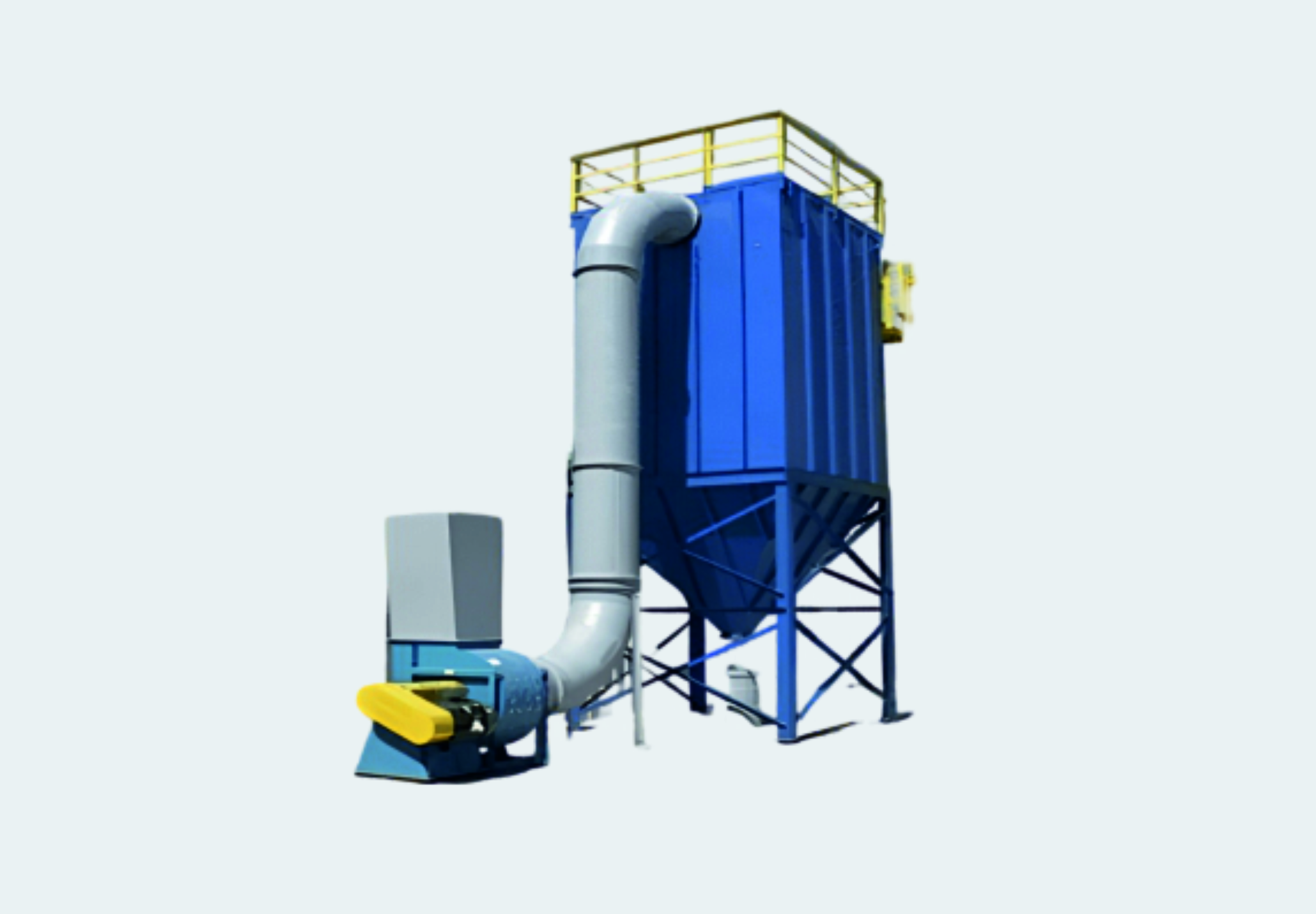

PULSE TYPE DUST COLLECTOR

A Pulse Type Dust Collector is an industrial air filtration system designed to remove dust particles and airborne contaminants from process air. It uses specially designed filter bags or cartridges to capture dust, while a compressed-air pulse cleaning system periodically removes accumulated dust from the filter surfaces. This system provides efficient dust collection, continuous operation and improved air quality in industrial environments. It is widely used in manufacturing plants, cement industries, metal processing, woodworking, pharmaceuticals and other dust-generating applications.

Enquire Now

PULSE TYPE DUST COLLECTOR - TECHNICAL SPECIFICATION

1.   Equipment Name - Pulse Jet Type Dust Collector
2.   Type - Industrial Bag Filter / Cartridge Filter
3.   Application - Industrial Dust Collection and Air Filtration
4.   Housing Material - Mild Steel (MS)
5.   Filter Media - Polyester / Antistatic / Other Suitable Media
6.   Filter Arrangement  - Filter Bags with Cages / Filter Cartridges
7.   Cleaning System - Automatic Pulse Cleaning
8.   Cleaning Medium - Compressed Air
9.   Cleaning Components - Solenoid Valves, Diaphragm Valves and Air Header
10. Dust Collection - Hopper with Suitable Discharge Arrangement
11. Pressure Monitoring - Differential Pressure Gauge / Transmitter
12. Control System - Electrical Control Panel with Timer or PLC, as specified
13. Air Inlet - As per Approved Design
14. Clean Air Outlet - As per Approved Design
15. Fan Arrangement - Separate / Integrated ID Fan, as specified
16. Surface Finish - Approved Industrial Protective Paint
17. Mounting - Floor-Mounted / Structural Support-Mounted
18. Operating Mode - Continuous / Intermittent, as required
19. Dust Discharge - Rotary Airlock Valve / Screw Conveyor / Other Suitable System
20. Maintenance Access - Inspection Doors and Filter Replacement Access
21. Design Standard - Applicable Project Specifications and Relevant Standards

PULSE TYPE DUST COLLECTOR – SUPPLY, INSTALLATION, TESTING AND COMMISSIONING

Supply, installation, testing and commissioning of an industrial pulse type dust collector, complete with a robust MS fabricated housing, filter bags or cartridges, filter supporting cages, compressed-air pulse cleaning arrangement, solenoid valves, diaphragm valves, compressed-air header, differential pressure monitoring system, dust collection hopper and discharge arrangement. The unit shall be designed to collect and separate airborne dust particles from industrial process air and provide filtered air at the outlet. The system shall include the required access doors, inspection provisions, inlet and outlet connections, structural supports and necessary accessories. The dust collector shall be suitable for continuous industrial operation and shall be designed in accordance with the approved process requirements, drawings and project specifications.
