Damper (Manual / Actuated)

DAMPER MANUAL & ACTUATED

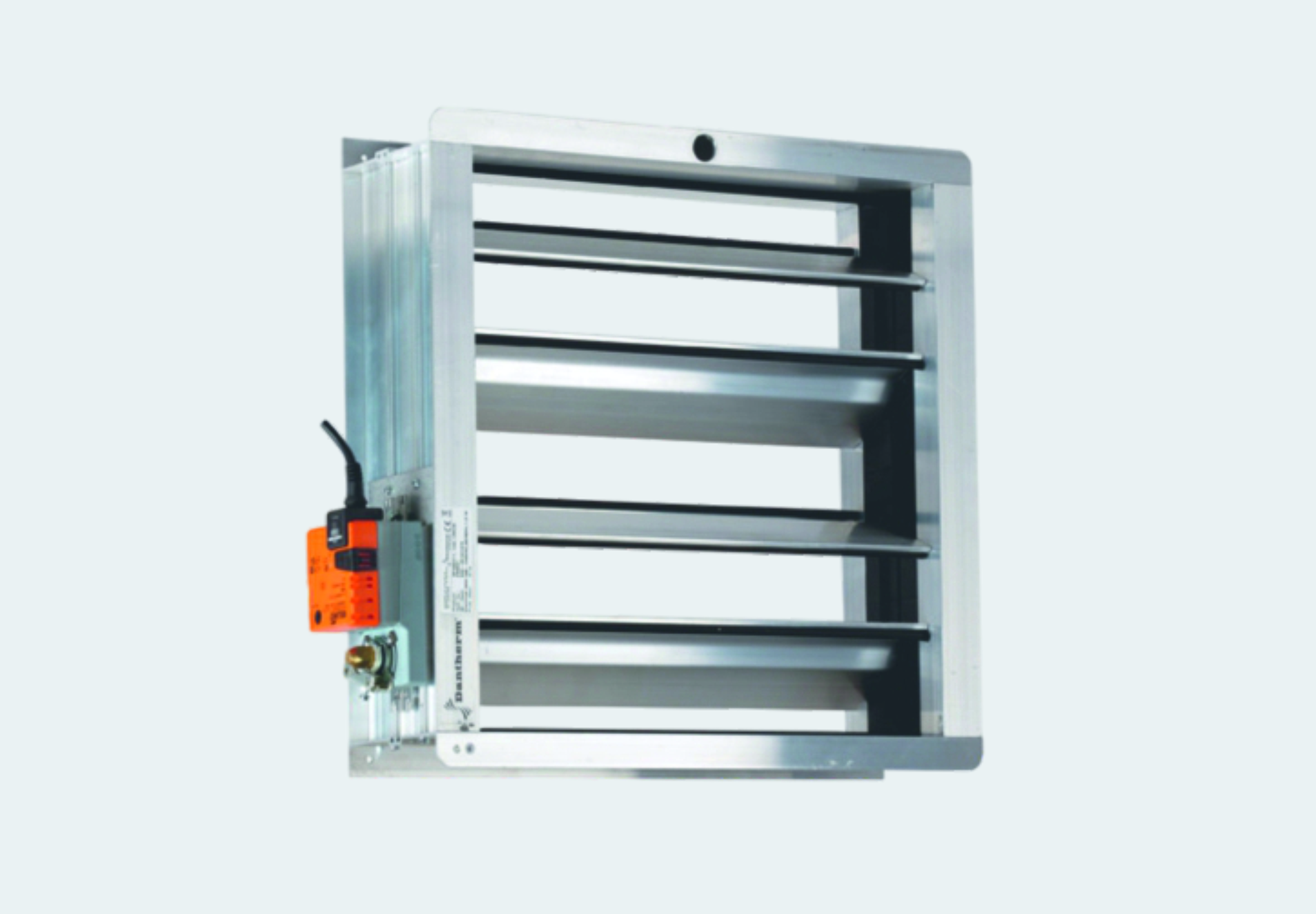

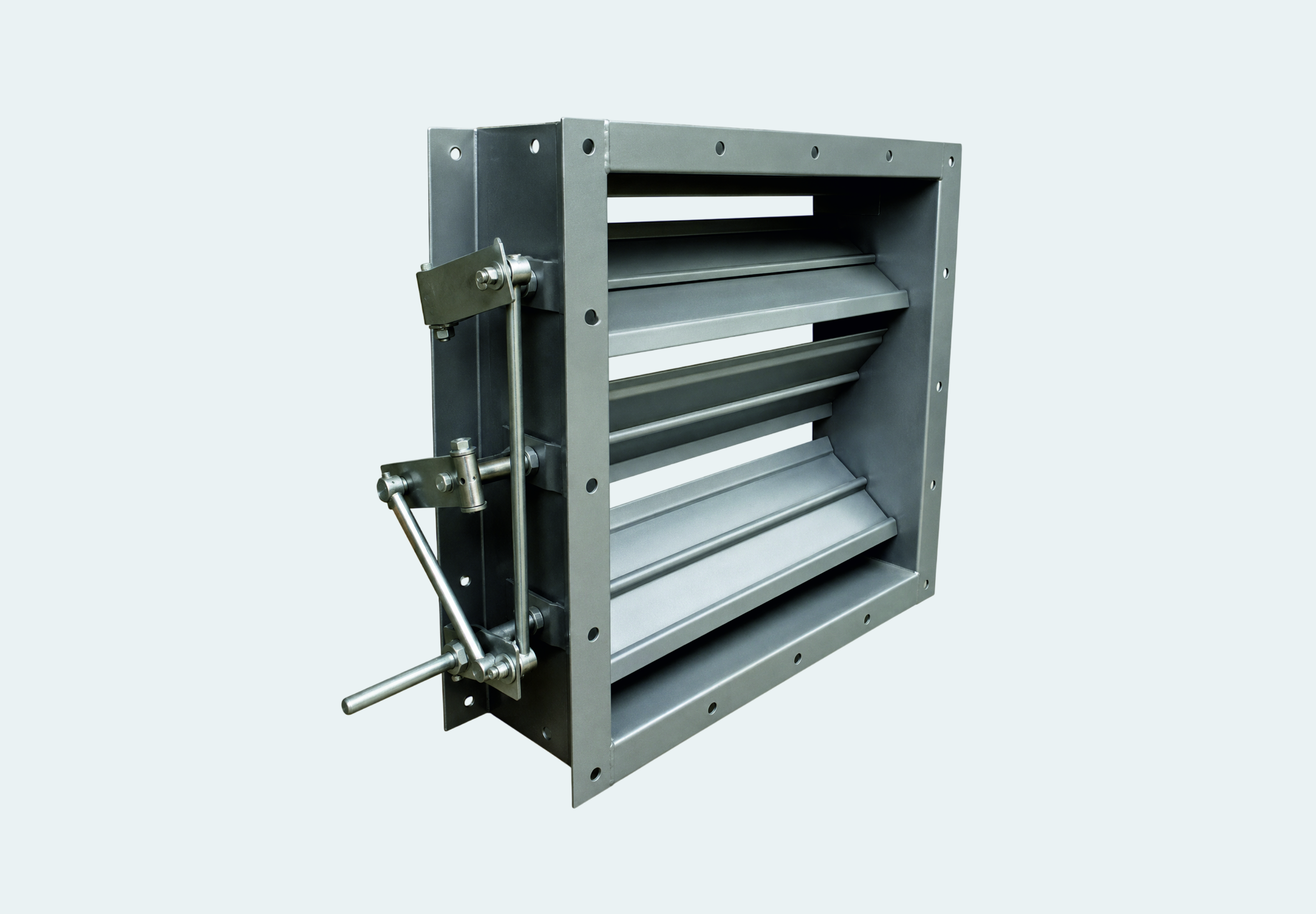

are essential components of HVAC and air distribution systems, designed to regulate, control, and balance the movement of air within ducts and ventilation networks. Manual dampers are adjusted by hand to control air volume, while actuated dampers use electric or pneumatic actuators for automatic or remote operation. Manufactured using GI (Galvanized Iron) or aluminium, these dampers provide reliable performance, durability, and efficient air control in commercial, industrial, and institutional applications.

Enquire Now Catalogue

DAMPER MANUAL & ACTUATED - TECHNICAL SPECIFICATION

1. Equipment Name - Manual Volume Control Damper
2. Damper Type - Manual Operated Volume Control Damper
3. Application - HVAC Supply Air / Return Air Ducting
4. Operating Method - Manual Operation
5. Casing Material - Galvanized Iron (GI) / Mild Steel (MS)
6. Blade Material - GI Sheet / MS Sheet
7. Blade Arrangement - Single Blade / Multi-Blade
8. Blade Operation - Manual Adjustable
9. Operating Mechanism - Manual Handle with Locking Quadrant
10. Spindle Material - GI / MS / Suitable Corrosion-Resistant Material
11. Frame Construction - Rigid Sheet Metal Frame
12. Airflow Control - Manual Air Volume Regulation
13. Installation Location - HVAC Ductwork|
14. Mounting Arrangement - Flanged / Duct-Mounted, as required
15. Accessories - Handle, Spindle, Locking Device, Fasteners and Fixing Accessories
16. Damper Size - As per Approved HVAC Drawings
17. Sheet Thickness - As per Approved Project Specifications
18. Leakage Performance - As specified in the project requirements
19. Operation - Smooth Adjustment and Secure Position Locking
20. Testing - Operational Inspection after Installation
21. Finish - Galvanized Finish / Approved Protective Coating

DAMPER MANUAL & ACTUATED - DESCRIPTION

Supply, installation, testing and commissioning of manually operated volume control damper for HVAC air distribution ductwork, fabricated from galvanized iron (GI) sheet or mild steel (MS), as specified. The damper shall be complete with an adequate frame, adjustable blades, operating spindle, manual operating handle, locking quadrant and all necessary mounting accessories, fasteners and supports. The damper shall provide smooth and reliable operation for regulating and balancing airflow within the ducting system. The installation shall be carried out in accordance with approved HVAC shop drawings, project specifications and applicable standards.
