CIRCULAR INLINE FAN – TECHNICAL SPECIFICATION
1. Fan Type – Compact circular inline fan designed for efficient supply and exhaust ventilation through circular duct systems.
2. Casing Construction – Strong and durable casing designed to withstand continuous operation and provide long service life.
3. Impeller Design – Aerodynamically optimized impeller ensures smooth air movement, reduced turbulence, and improved fan efficiency.
4. Motor – High-efficiency motor suitable for continuous-duty operation with reliable performance and optimized energy consumption.
5. Air Volume – Designed to deliver consistent air volume according to the required ventilation capacity and system resistance.
6. Static Pressure – Capable of overcoming duct resistance, bends, filters, grilles, and other system pressure losses.
7. Low Noise Operation – Balanced rotating components and optimized aerodynamic design help reduce operational noise and vibration.
8. Energy Efficiency – Efficient motor and impeller design help achieve required air performance with reduced power consumption.
9. Compact Design – Space-saving construction allows convenient installation where available space is limited.
10. Duct Connection – Circular inlet and outlet connections allow easy integration with standard circular ductwork.
11. Installation Position – Suitable for horizontal as well as vertical installation, depending on the application and system arrangement.
12. Air Volume Direction – Provides controlled and directional air movement through the connected duct network.
13. Vibration Control – Dynamically balanced impeller and suitable mounting arrangements ensure smooth and stable operation.
14. Maintenance – Easy-access construction simplifies inspection, cleaning, servicing, and routine maintenance.
15. Operating Reliability – Designed for dependable performance under continuous ventilation and exhaust requirements.
16. Application Flexibility – Suitable for fresh-air supply, exhaust ventilation, air circulation, and general air extraction systems.
17. Control Options – Can be integrated with suitable speed-control or ventilation-control systems as per project requirements.
18. Safety – Motor and electrical components can be selected according to the required operating environment and applicable standards.
19. Service Life – Robust construction and reliable components provide long-term performance with proper installation and maintenance.
CIRCULAR INLINE FAN – DESCRIPTION

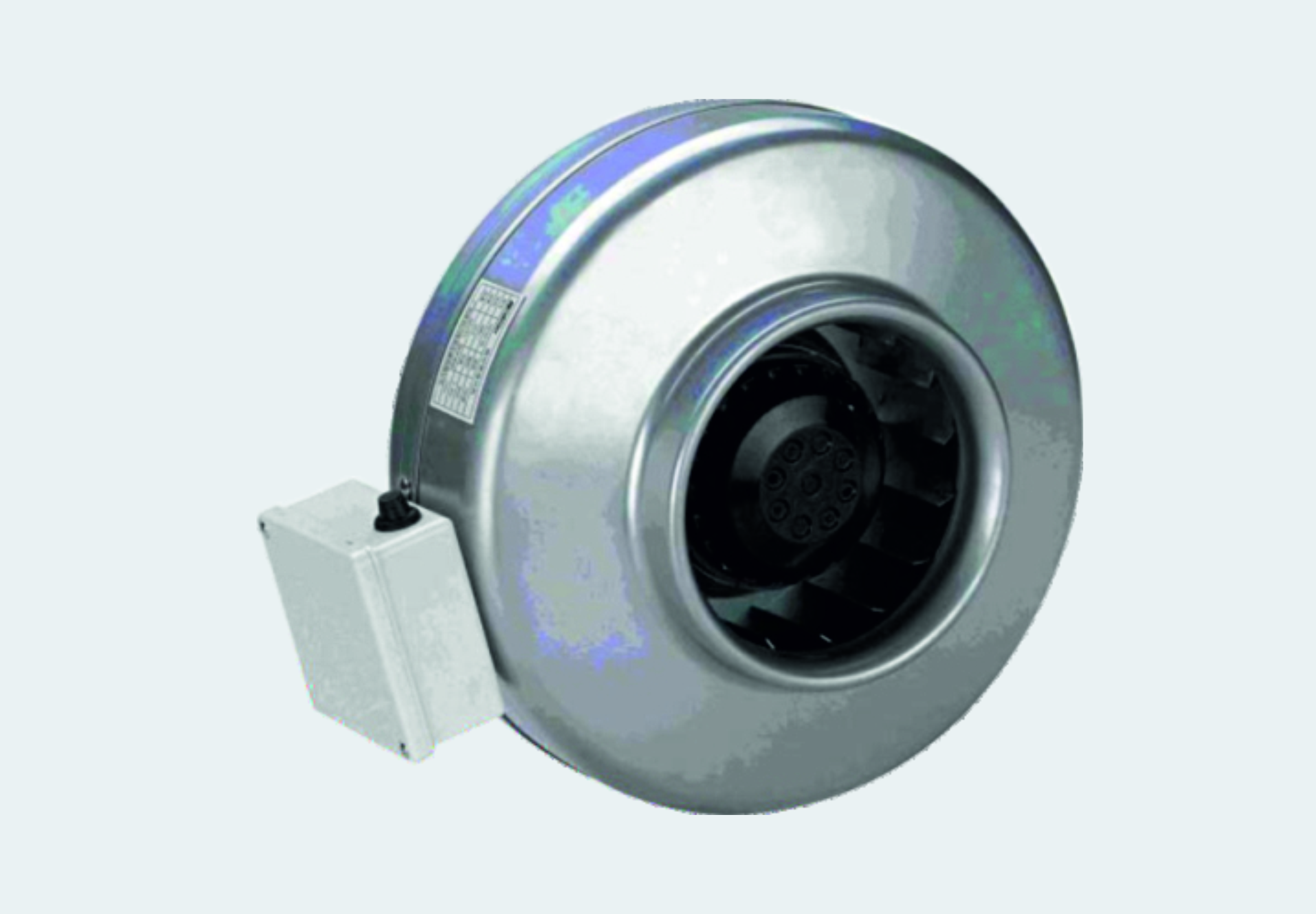

A Circular Inline Fan is a compact and efficient ventilation unit designed for installation directly within circular duct systems. It is engineered to provide continuous and reliable air movement in supply and exhaust ventilation applications. Its streamlined design helps maintain smooth air passage while minimizing pressure losses and operating noise.
The fan is equipped with an aerodynamically designed impeller and high-efficiency motor, ensuring stable performance, energy-efficient operation, and dependable air Volume. Its compact construction makes it suitable for applications where installation space is limited. The fan can be easily integrated into existing or new circular duct networks and is suitable for both fresh-air supply and contaminated-air exhaust.
