Technical Specifications – Axial Jet Fan
1. Fan Type - Axial Jet / Impulse Fan
2. Air Volume - 2,000 – 50,000 m³/h
3. Thrust - 50 – 1,500 N
4. Fan Diameter - 315 – 1,250 mm
5. Motor Power - 0.75 – 30 kW
6. Motor Speed - 750 – 2,900 RPM
7. Operating Temperature - -20°C to +50°C
8. Smoke Extraction - 250°C / 300°C / 400°C for specified duration, as required
9. Motor Protection - IP55 / IP65
10. Insulation Class - Class F / H
11. Power Supply - 3-Phase, 380–415 V, 50 Hz
12. Fan Casing - Galvanized Steel / Mild Steel / Stainless Steel
13. Impeller - Aluminium / High-strength Alloy
14. Control - Direct Online / VFD / BMS Compatible
15. Installation - Ceiling Suspended / Wall Mounted
16. Application - Car Parks, Tunnels, Industrial Buildings & Smoke Ventilation

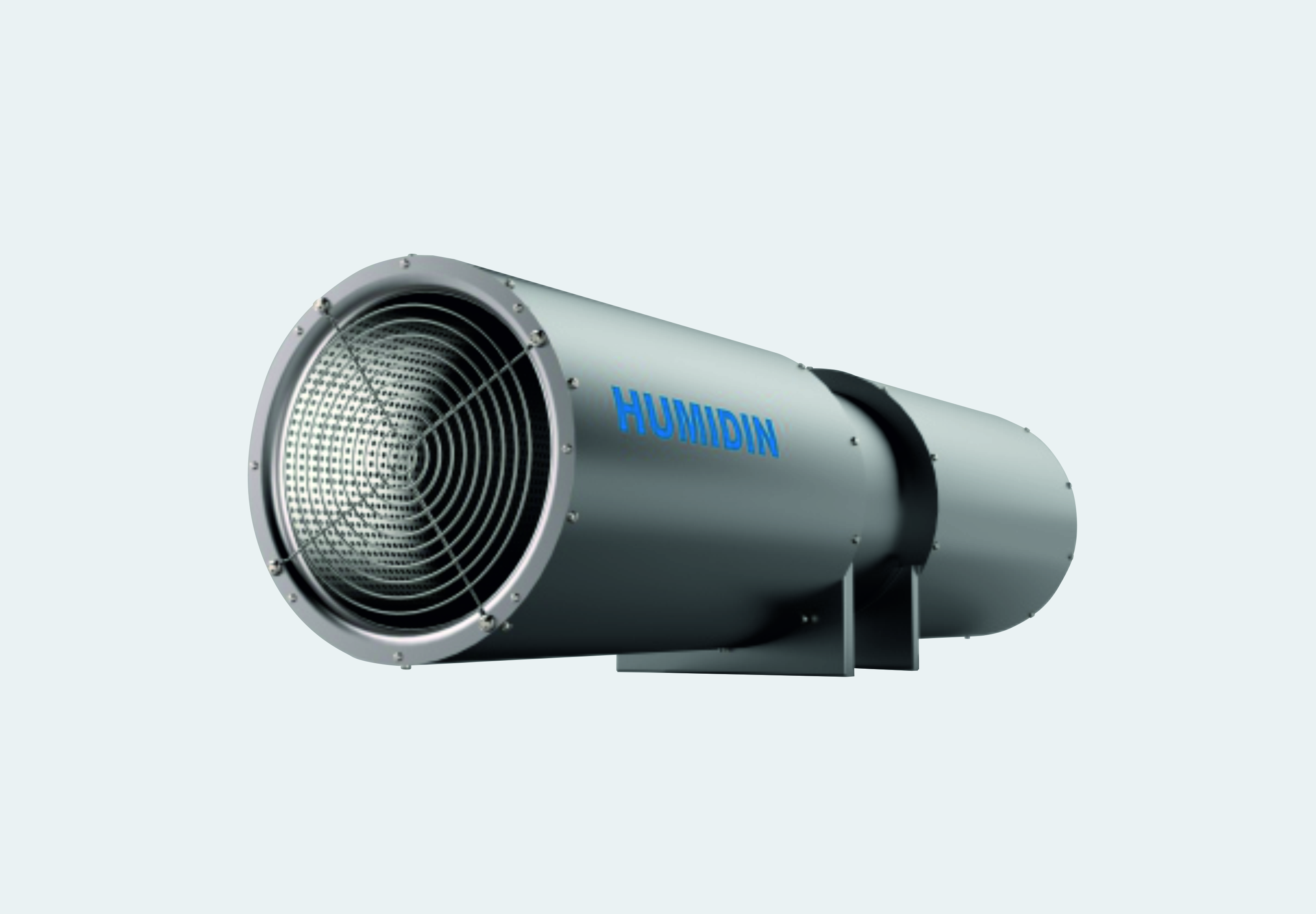

AXIAL JET FAN – DESCRIPTION
Axial Jet Fans are compact, high-performance ventilation systems designed to move large volumes of air efficiently through enclosed spaces. They create a high-velocity air jet that drives air movement and helps remove smoke, heat, fumes, and pollutants. These fans are widely used in car parks, tunnels, industrial facilities, and other areas requiring effective air circulation and smoke control.
