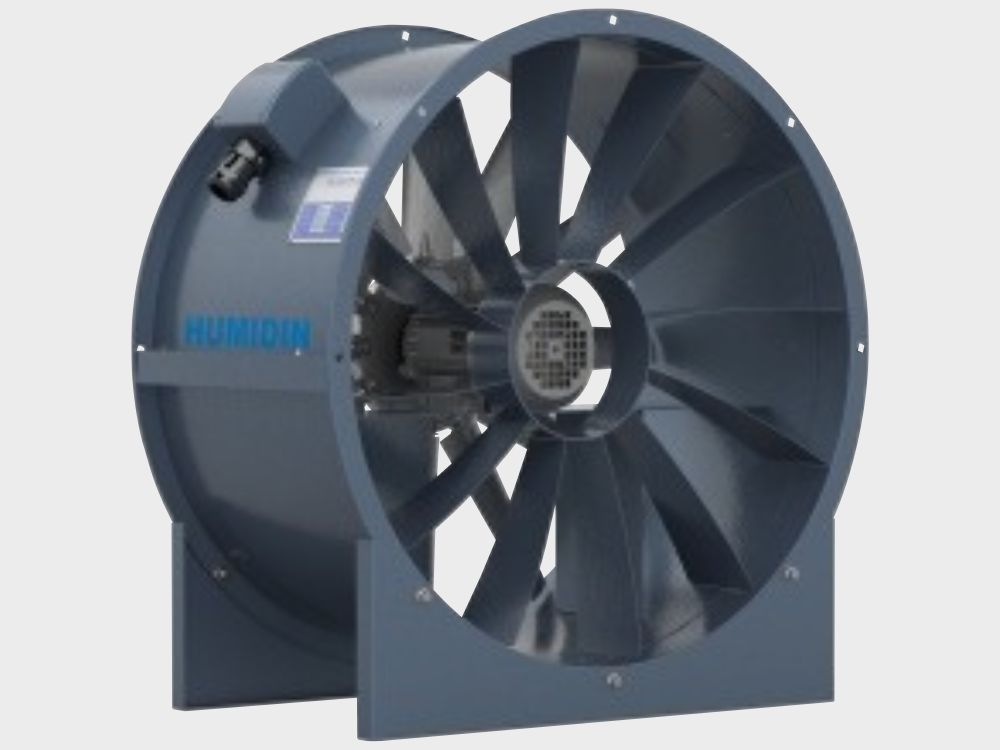

Vane Axial Fan

Vane Axial Fan

Material of Construction
Axial Flow Fan Casing is made out of MS (Mild Steel) with Epoxy/Powder Coated or also available in G.I (180-225)GSM

Enquire Now

Features:

  • High Performance
  • Low Sound
  • Non Overloading Characteristics
  • Suitable for High Pressure Range
  • Aerofoil Blades with higher Lift Coefficient
  • Performance flexibility with adjustable blades
  • 100% X-Rayed impellers
  • Statically / Dynamically Balanced at grade of G2.5
  • Compatible with variable frequency drives
  • Die cast aluminum hub and blades
  • Rugged construction with automatic flanging machine with re-flanging feature.
  • Bi/uni direction possible • Easy installation of impellers with taper lock bush inside the hub
  • We offer Taper Bush of various diameters and blade configurations for different applications. It ensure a fine grip between the hub & motor shaft and also for easy handling while assembling and dismantling.

Motors

  • General ventilation: Totally Enclosed Fan Cooled (TEFC), Class "F".
  • Smoke exhaust system: Totally Enclosed Fan Cooled High Temperature Rated (250°C/300°C/400°C IP55 protection. Standard motors up to 2.2kw are supplied with DOL starting. Motors 3.0kW and above are with star-delta starting. Motors of other specification are available upon request.

We Have Our Own Fan Selection Software

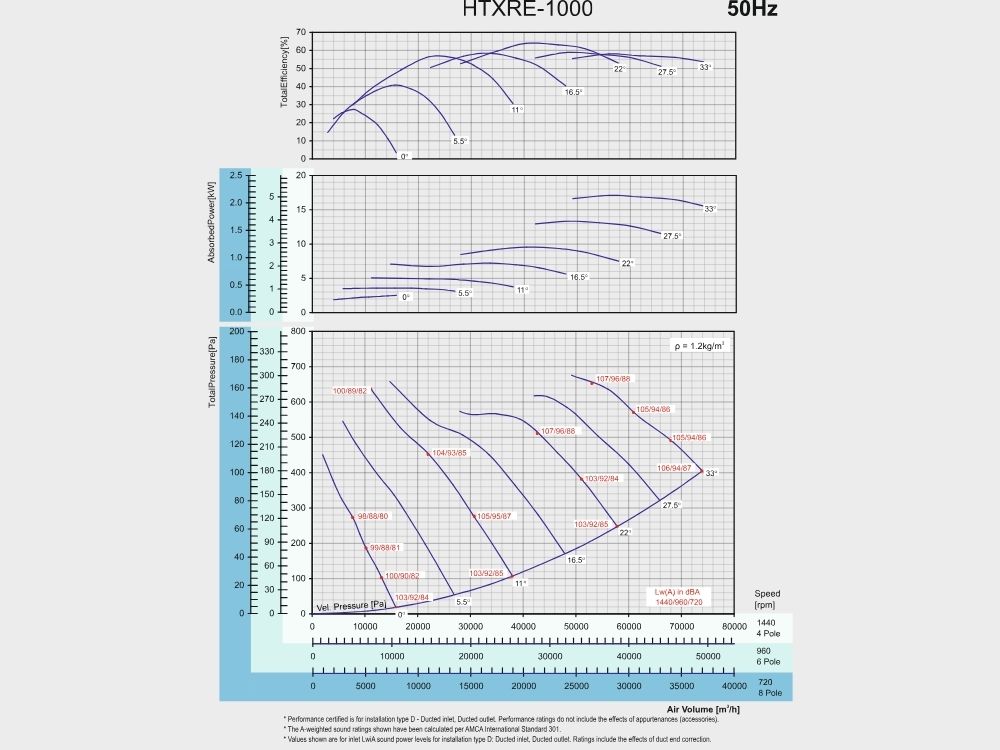

To make complete and accurate fan selections make use of HUMIDIN comprehensive and user-friendly selection program. By simply specifying your performance requirements, selection program will be able to provide you with instant access to fan performance curves, sound data, efficiency, speed, motor capacity, drawings and much more, all at the click of a mouse.
